QSFP+ BiDi

More Views

  • QSFP+ BiDi
  • 40G QSFP+ BiDi
  • QSFP+ BiDi Dual LC
  • 40G QSFP+ BiDi 850nm
  • QSFP+ BiDi 890nm

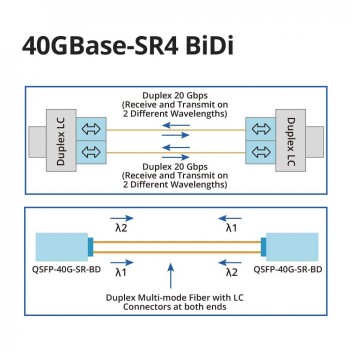

  • QSFP+ BiDi Connection diagram

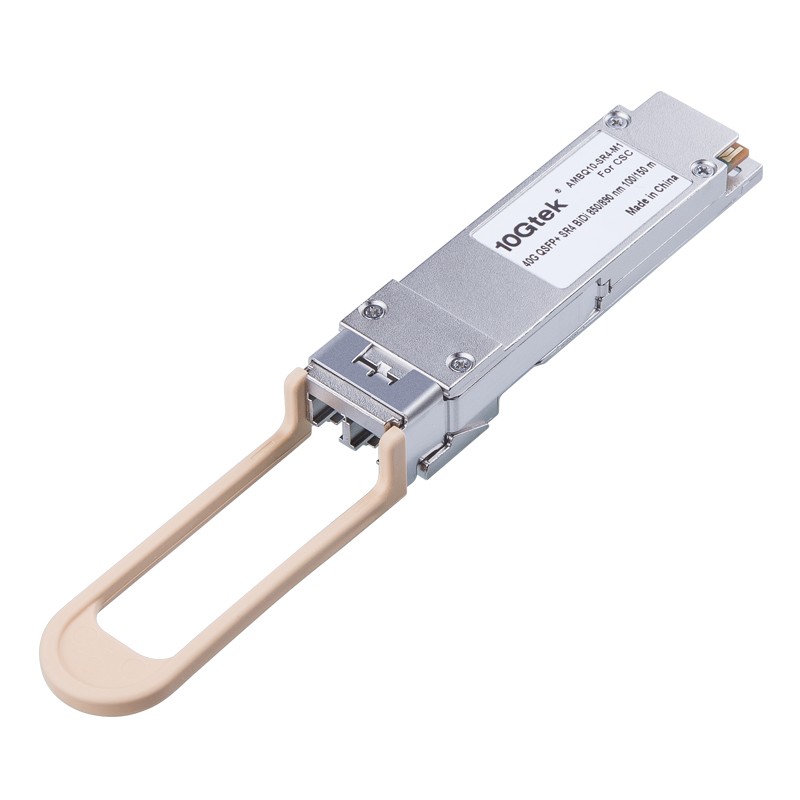

QSFP+ BiDi Transceiver, 850~890nm, LC MMF 100/150 meters

SKU: QSFP-40G-SR-BD SKU1: QSFP-40G-SR-BD

Availability: In stock

US$400.00
Volume Price: Inquire
  • Model: QSFP-40G-SR-BD
  • CPN: QSFP-40G-SR-BD
● HPE incompatible for HPP-Aruba
● 40GBase-SR4-BiDi
● Data Rate:  40G, QDR
● Wavelength:  850~890-nm
● Reach1:  up to 100 meters @ OM3 MMF
● Reach2:  up to 150 meters @ OM4 MMF
● Fiber Type:  OM3/OM4 MMF
● Interface:  Dual LC connectors

● 10Gtek offer Compatible Service

To work with following brands, please choose Cisco/OEM

Broadcom,

Cumulus, Chelsio, Centec,

Emulex, Edgecore,

F5,

Huawei,

Ixia,

Mikrotik,

Netgear,

Supermicro, Solarflare

Compatible Option
  • Cisco/OEM**
  • HPE (H3C)
  • Arista
  • Brocade
  • Dell (Force10)
  • Extreme
  • Juniper
  • IBM/Blade/Lenovo
  • Mellanox
  • Intel
  • Customized Requst
more+

* Required Fields

US$400.00
Product Description Shipping & Payment Customer Reviews
QSFP-40G-SR-BD

Details

40Gbps QSFP BiDi transceiver reduces overall costs and installation time for customers migrating data center aggregation links to 40Gbps connections. This QSFP BiDi transceiver has two 20Gbps channels, each transmitted and received simultaneously over two wavelengths on a single MMF strand. The result is an aggregated duplex 40Gbps link over a MMF duplex LC fiber cable. The connection can reach 100 meters on OM3 MMF or 150 meters on OM4 MMF, which is the same as 40Gbps SR4. It provides the capability to reuse 10Gbps fiber infrastructure. In other words, it enables data center operators to upgrade to 40Gbps connectivity without making any changes to the previous 10Gbps fiber cable plant. 10Gtek's QSFP+ transceivers pass the following IOL Interoperability test with most major brands for both OS and hardware compatibility.

Features:
  • 40GBase-SR4-BiDi
  • Data Rate: 40G, QDR
  • Wavelength: 850~890-nm
  • Interface: Daul LC Connectors
  • Ratch1: up to 100 meters @ OM3 MMF
  • Ratch2: up to 150 meters @ OM4 MMF
  • Fiber Type: OM3/OM4 MMF
  • Power Consumption: <1.5W
  • Excellent EMI performance
  • Temp. Range(℃): 0~70
Applications:
  • Ethernet 10G, 40G
Order Information:
Part Number Description Data Rate Wavelength Reach Connector Fiber Type TX Power (dBm) Rx Sens. (dBm) Temp. Range(°C)
AMQ10-SR4-M1 QSFP+ SR4 44.8Gbps 850nm 150 m MTP/MPO MMF -7.6~1 < -9.5 0~70
AMQ-eSR4-M3 QSFP+ eSR4 44.8Gbps 850nm 300 m MTP/MPO MMF -7.3~1 < -9.9 0~70
QSFP-40G-SR-BD
QSFP+ BIDI 44.8Gbps 850nm/890nm 100m on OM3 / 150m on OM4 LC MMF -0.5~3.6 < -4.5 0~70
ALQ10-LX4-02 QSFP+ LX4 44.8Gbps 1310nm 100m on OM3 / 2km on SMF LC MMF/SMF -7~2.3 < -9.6 0~70
AMQ10-IR4-02 QSFP+ IR4 PSM 44.8Gbps 1310nm 1.4 km MTP/MPO SMF -5.5~1.5 < -11.5 0~70
AMQ10-LR4-10 QSFP+ LR4 PSM 44.8Gbps 1310nm 10 km MTP/MPO SMF -5.5~1.5 < -12.6 0~70
ALQ10-IR4-02 QSFP+ IR4 44.8Gbps CWDM 2 km LC SMF -7~2.3 < -11.7 0~70
ALQ10-LR4-10 QSFP+ LR4 44.8Gbps CWDM 10 km LC SMF -7~2.3 < -13.7 0~70
ALQ10-ER4-40 QSFP+ ER4 44.8Gbps CWDM 40 km LC SMF -3.7~4.5 < -20.2 0~70
AMQ14-SR4-M1 FDR QSFP+ SR4 56Gbps 850nm 100M on OM3 / 150M on OM4 MTP/MPO MMF -8.2~2.4 <-11 0~70

QSFP+ Transceivers
