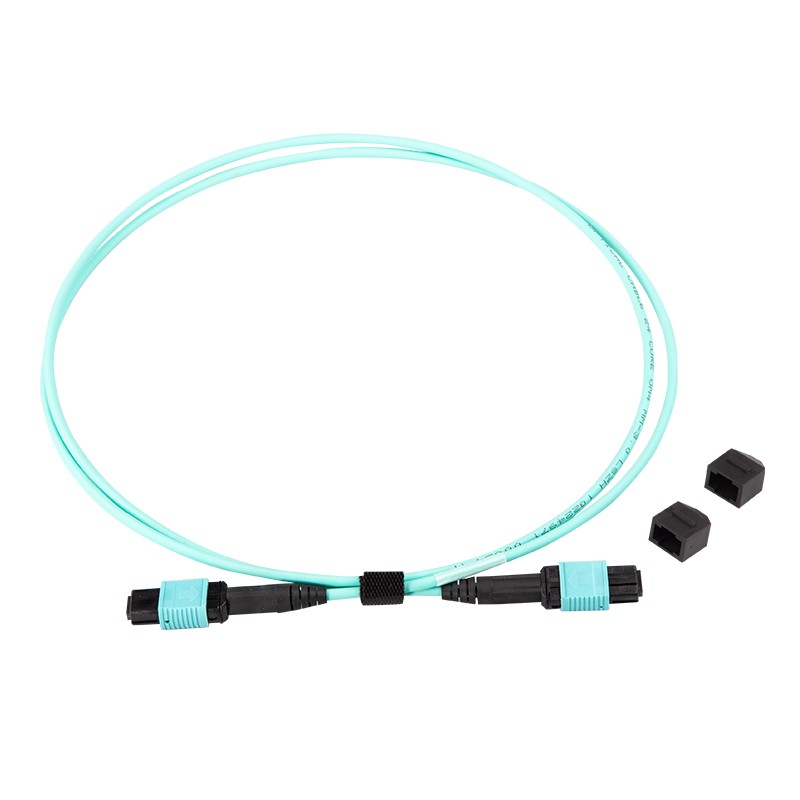

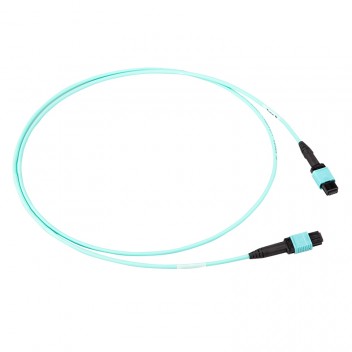

MPO to MPO, Multimode OM3 50/125μm, 24-Core

More Views

  • MPO to MPO, Multimode OM3 50/125μm, 24-Core
  • MPO to MPO, Multimode OM3 50/125μm, 24-Core #4

MPO to MPO, Multimode OM3 50/125μm, 24-Core

SKU: OM3-MPO-24MPO SKU1: OM3-MPO-24MPO

Availability: In stock

$32.12
Volume Price: Inquire
  • Model: OM3-MPO-24MPO
  • CPN: OM3-MPO-24MPO

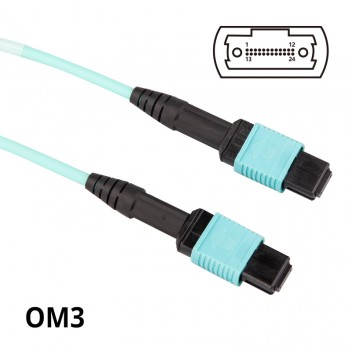

● MPO to MPO, 24-core
● MPO Female (without pin)
● MMF, OM3 (50/125μm)
● Polish: UPC
● Cable OD: Φ3.0mm
● LSZH

* Required Fields

$32.12
Product Description Shipping & Payment Customer Reviews
OM3-MPO-24MPO
Specification:

Pre-terminated MPO Technology-Polarity

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.



Guidelines for Fiber Polarity - 24F

The three polarity methods A, B and C as defined in TIA-568-C, for their part, are used to guarantee the right bi-directional allocation.

24 Fibers Polarity

Key Position

Fiber Features

Application

Type A (straight through transmission)

Key up to Key down

Each fiber is in the same position on each end.

Typically for connecting FAPs and cassettes in 10Gbps networks

Type B(full flipped transmission)

Key up to Key up

The fiber is fully flipped on either end.

Connecting to QSFP+ /CFP / FAPs or cassettes in 10G to 40G/100G

Type C(pair flipped transmission)

Key up to Key down

Each adjacent pair of fibers at one end are flipped at the other end.

Typically used in CXP or Cassettes applications



MTP/MPO Machinery & Testing Equipment




1. Our adopt industry's leading high-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.

2. The industry leading device of 3D interferometer provides verification of MTP/MPO polishing process, the interferometer making all parameters of hte polished MT ferrule complies and exceeds industry standards.

3. After the 3D interference detection, the flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblies.

4. Continuity Testing system: first set the cable sequence in system, connect the product to be tested with the machine, then choose the right cable sequence and test, this can check if the products’ cable sequence correct or not.

Performance index:
parameter unit FC、SC、LC、ST MPO E2000
SM MM SM MM SM
APC PC UPC APC PC UPC APC PC UPC APC PC UPC APC PC UPC
Insertion loss
(typical)
dB ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.6 ≤0.7 ≤0.3
Retum loss dB ≥60 ≥50 ≥55 ≥45 ≥35 ≥35 ≥50 ≥30 ≥60 ≥50 ≥55
Operating
wavelength
nm 1310 850 1310 850 1310
Exchangeability dB ≤0.2 ≤0.3 ≤0.2
Vibration dB ≤0.3 ≤0.3 ≤0.2
Operating
temperature
-25°C to 70°C -40°C to 80°C -40°C to 70°C
Storage
temperature
-20ºC~+75ºC  -20ºC~+75ºC  -20ºC~+75ºC
Cable diameter mm 0.9mm 2mm 3mm. 0.9mm 2mm 3mm. 3mm  3mm  3mm
Durability 7-10 years 7-10 years 7-10 years
Outer Jacket Color Yellow Orange/Aqua Yellow Orange/Aqua Yellow
Cable Structre Simplex/Duplex Simplex/Duplex 8/12/24/48 core 8/12/24/48 core Simplex/Duplex
Standards Compliance ROHS/REACH ROHS/REACH ROHS/REACH ROHS/REACH ROHS/REACH
Order Information:
Part Number Description Fiber Type Connector MPO Polarity Cores
OM3-MPO-8MPO-xM

MPO, OM3, 8Core Fiber Patch Cord

OM3 MPO B Optional 8 cores
OM3-MPO-12MPO-xM

MPO, OM3, 12Core Fiber Patch Cord

OM3 MPO B Optional 12 cores
OM3-MPO-24MPO-xM

MPO, OM3, 24Core Fiber Patch Cord

OM3 MPO A/B/C Optional 24 cores
OM4-MPO-8MPO-xM

MPO, OM4, 8Core Fiber Patch Cord

OM4 MPO B Optional 8 cores
OM4-MPO-12MPO-xM

MPO, OM4, 12Core Fiber Patch Cord

OM4 MPO B Optional 12 cores
OM4-MPO-24MPO-xM

MPO, OM4, 24Core Fiber Patch Cord

OM4 MPO A/B/C Optional 24 cores
OS2-MPO-8MPO-xM

MPO, SMF, 8Core Fiber Patch Cord

SMF(9/125um) MPO B Optional 8 cores
OS2-MPO-12MPO-xM

MPO, SMF, 12Core Fiber Patch Cord

SMF(9/125um) MPO B Optional 12 cores
OS2-MPO-24MPO-xM

MPO, SMF, 24Core Fiber Patch Cord

SMF(9/125um) MPO A/B/C Optional 24 cores

MPO-MPO Optical Patch Cord
