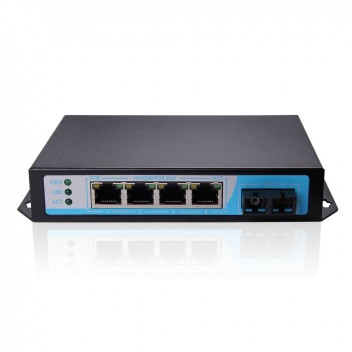

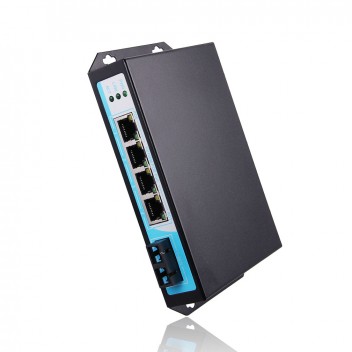

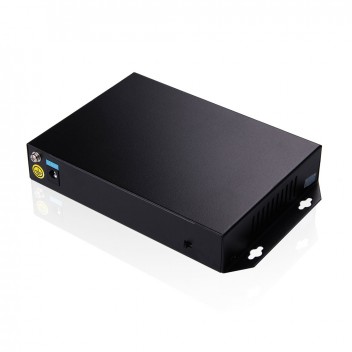

10Gtek 5-Port PoE Switch, with 4x 10/100Mbps PoE Ports, Unmanaged, 802.3af, 65W Power Budget, application for Access points, VoIP phone, IP Camera

More Views

10Gtek 5-Port PoE Switch, with 4x 10/100Mbps PoE Ports, Unmanaged, 802.3af, 65W Power Budget, application for Access points, VoIP phone, IP Camera

SKU: A7S3-35-1FX4TX-SC20

Availability: In stock

$49.99
Volume Price: Inquire
●65W total power, each PoE port power up to 15.4W.
●4 x PoE(10/100M) ports + Dual SC fiber Optical Port (Dual Fiber)(10/100/1000M)
●RJ45 PoE Auto-negotiation 10/100M Ethernet
●Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af
●No Support Network management
OR
Product Description Shipping & Payment Customer Reviews
A7S3-35-1FX4TX-SC20

Details

10Gtek's Fast Ethernet PoE Switch 10/100Mbps, 10/100Mbps or 10/100/1000M Power over Ethernet Switch(POE Switch), using high-quality high-rate network IC and the most stable PoE chip, PoE port support 802.3af or 802.3at standard. This series PoE switches provide seamless connectivity to 10 / 100M or 10/100 / 1000M Ethernet, and PoE power port can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). Non-PoE powered device is not mandatory powered, only transmit data.

Features:
  • Support power by a Cat.5 Ethernet cable wireless access point(AP) and network surveillance cameras
  • 1~24 port support IEEE802.3af standard or IEEE802.3atstandard power (Optional)
  • Auto-negotiation 10/100M or 10/100/1000M
  • Complies with IEEE 802.3 10Base-T and IEEE 802.3u100Base-TX standard
  • Flow control:IEEE 802.3x flow control for Full-duplex Mode,Backpressure for Half-duplex Mode
  • Auto-MDI/MDIX
  • Supports uplink port Lightning protection
  • Each PoE port power up to 15.4W(AF) or 30W(AT)
  • Adopts store and forward switching mechanism
  • All ports support wire-speed switching, frame size in the range of64 to 1536 can achieve wire-speed
  • Supports MAC address auto-learning and auto-update function
  • High performance full load power configuration
Applications:
  • Metro optical broadband network: telecommunications, cable television, network systems integration and other data network operators.
  • Broadband private network: suitable for the financial, government, oil, railways, electricity,public security, transportation, education and other industry private network.
  • Multimedia transmission: image, voice, data, integrated transmission for remote teaching, video conferencing, video telephony etc.
  • Real-time monitoring: real-time control signal, image and data transmission simultaneously.
  • anti-poor environment: suitable for strong electromagnetic interference, long-distance harsh environment to networking.
Specifications:

Technical Parameter List:

Product Name

5-Port AF PoE Switch with 4 PoE Ports and 1 Uplink Single Fiber

Model

A7S3-35-1FX4TX

Connector Type

4 x 10/100M copper cable RJ45 ports(4 PoE ports+1 Uplink Single Fiber port)

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or more UTP (≤100 meter)

Bandwidth

1.0Gbps (non-blocking)

Address Database Size

1K

MTBF

190,000 hours (about 21 years)

Forwarding Mode

Store-And-Forward

Network Protocols

IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control;

 IEEE 802.1af DTE Power via MDI; IEEE 802.3af

LED Display

System: power supply; Every Port: connecting, PoE working status

Power Supply

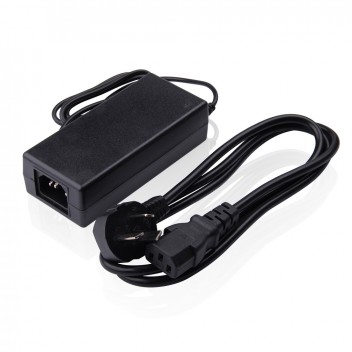

Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

PoE Ports

Port1-4 support PoE

PoE Port Power

15.4W for each PoE port

PoE Standard

IEEE 802.3af

PoE Feature

All ports support MDI/MDIX

Working Environment

Operating Temperature: -20° ~ 55°C; Storage Temperature: -40°~ 85°C;

Operating Humidity: 10% ~ 95%, non-condensing

Certification

CE Mark ,commercial; CE/LVD EN60950, RoHS

Radiation

CE mark, commercial; FCC Part 15 Class B; VCCI Class B; EN 55022 (CISPR 22), Class B

Transmission Distance

Optical port 20km by default. 20km, 40km, 60km, 80km,120km can be customised.

Warranty

3 year warranty(1 year warranty for power adapter)
