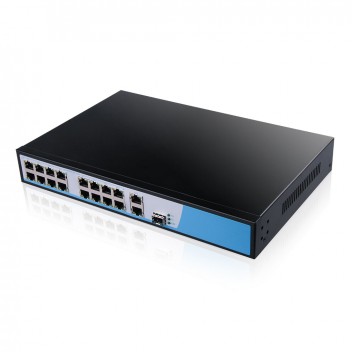

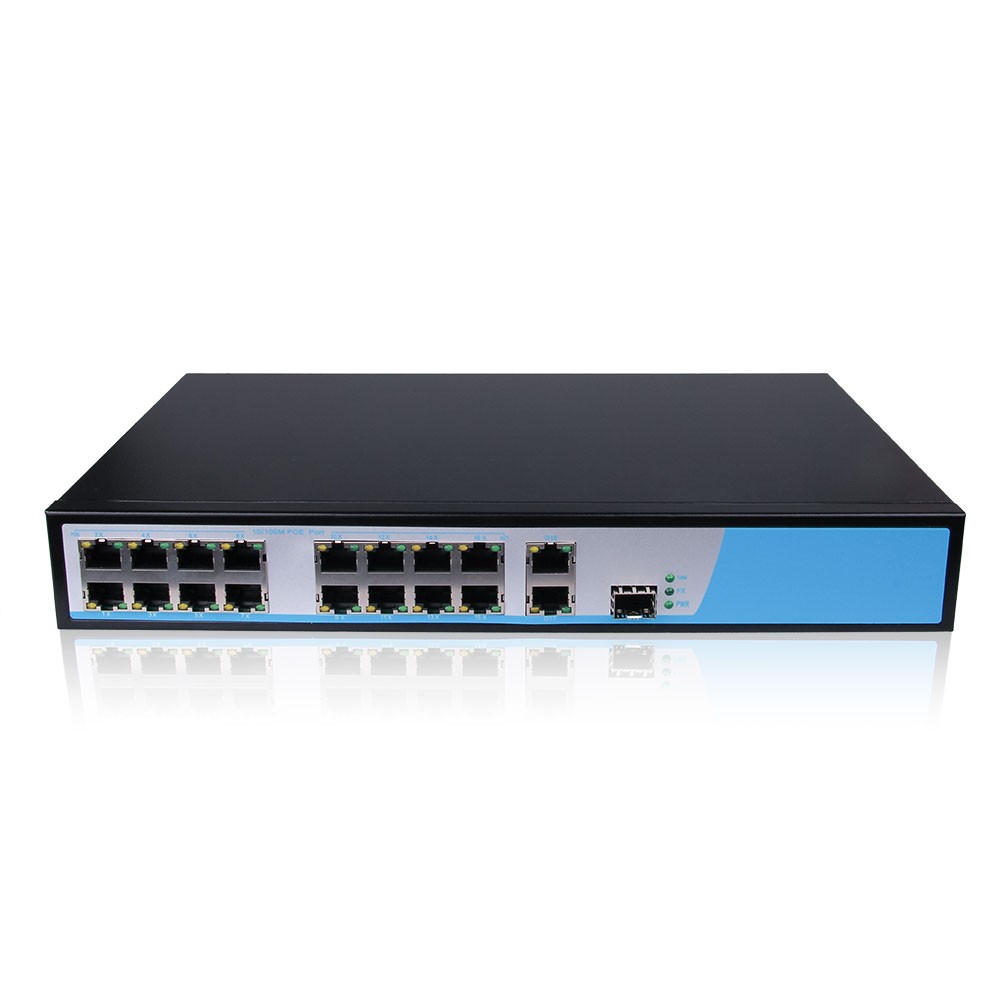

300W 16-Port Fast Ethernet PoE Switch 10/100, with 300W 16-PoE Ports, Support IEEE 802.3af/at

More Views

300W 16-Port Fast Ethernet PoE Switch 10/100, with 300W 16-PoE Ports, Support IEEE 802.3af/at

SKU: A7S3-35-1GX2GT16TX-SFP

Availability: In stock

$99.00
Volume Price: Inquire
●300W total power, each PoE port power up to 30W.
●16 ports 10/100M POE port+2 ports Gigabit Uplink Ethernet port+1 port Gigabit Uplink SFP port
●RJ45 PoE Auto-negotiation 10/100M Ethernet
●Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at
●No Support Network management
OR
Product Description Shipping & Payment Customer Reviews
A7S3-35-1GX2GT16TX-SFP

Details

10Gtek's 16-Port PoE Switch, adapted high-quality high-speed network IC and the most stable PoE chip, PoE port to meet the 802.3af or 802.3at standard. This series of PoE switches can be 10 / 100M Ethernet Network providing seamless connection, and PoE power supply port can automatically detect IEEE802.3af or IEEE802.3at compliant power supply equipment and its power supply, only transmit data for non-PoE equipment.

PoE technology (Power over Ethernet), refers to the power supply technology that some IP-based terminals(such as IP telephones, wireless access AP, network cameras, etc.) provide DC power for the device while transmitting data signals. Those equipments which receive DC power supply called power receiving equipment.

This series of PoE switches, use 16 ports 10/100M POE port+2 ports Gigabit Uplink Ethernet port+1 port Gigabit Uplink SFP port, the uplink port used to provide network data and network equipment docking.
Features:
  • Support power by a Cat.5 Ethernet cable wireless access point(AP) and network surveillance cameras
  • 1~16 port support IEEE802.3af standard or IEEE802.3atstandard power(Optional)
  • Auto-negotiation 10/100M
  • Complies with IEEE 802.3 10Base-T and IEEE 802.3u100Base-TX standard
  • Flow control:IEEE 802.3x flow control for Full-duplex Mode,Backpressure for Half-duplex Mode
  • Auto-MDI/MDIX
  • Supports uplink port Lightning protection
  • Each PoE port power up to 30W(AF/AT)
  • Adopts store and forward switching mechanism
  • All ports support wire-speed switching, frame size in the range of64 to 1536 can achieve wire-speed
  • Supports MAC address auto-learning and auto-update function
  • High performance full load power configuration
Applications:

  • HD monitor transmission and power supply
  • Wireless AP layout transmission and power supply
  • Network telephone transmission , intelligent house and home system
  • Intelligent transportation supervisory system (ITS)
  • High-speed Way supervisory/Tele-Communication System
  • Security protection system, TV medical treatment
  • Long-distance Muti-media Schooling, Campus monitoring
  • Long-distance broadcast television transmission system
  • High-building Security Protection, Military Tele-Com projects
Specifications:

Technical Parameter List:

Product Name

19-Port AF PoE Switch with 16 PoE Ports and 3 Gigabit Uplink ports

Model

 A7S3-35-1GX2GT16TX-SFP

Connector Type

16-ports 10/100M POE port, with 2-ports Gigabit Uplink Ethernet port+1-port Gigabit Uplink SFP port

Optical

Multi mode fiber:  1310nm, 2Km

Single mode fiber: 1310nm, 20/40 Km

1550nm, 60/80/100/120Km

Bandwidth

9.2Gbps (non-blocking)

PoE Standard

IEEE 802.3af( each port 15.4W)

IEEE 802.3at(each port 30W)

POE Compatibility

AF/AT self-adaptive

POE power output

DC48V

Power Supply

Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

PoE power pin

12+,36- ( 45+,78- Optional)

PoE Port Power

15.4W for each POE port

PoE Feature

All ports support MDI/MDIX

Network Protocols

Support IEEE802.3, IEEE802.3u, IEEE802.3x

MAC address

8K

Network Media

10BASE-T: Cat6 UTP(≤250 meter) ;100BASE-TX: Cat5 or more UTP (≤100 meter); 1000BASE-TX: Cat5 or more UTP (≤100 meter)

LED Indicator

10M: it is on 10Mbps transmission rate while it’s blink

PWR:power is connect while it’s on green

Yellow light; POE Running

Green light: Ethernet Running

Working Environment

Operating Temperature: 0 ° ~ 50° C; Storage Temperature: -40 ° ~ 70 ° C; Operating Humidity: max 90%, non-condensing

Certification

CE,CCC,FCC,RoHs

Transmission Distance

POE transmission distance:100meters, 250meters(when it’s on 10Mbps rate with Cat.6 or more )

Uplink transmission distance: 100meters( Uplink RJ45 port);

Depend on your SFP module( Uplink SFP port)

Warranty

2 year warranty( 1 year warranty for power adapter)
