24 Core MPO Box, 2 ports MPO to 2x 12 ports LC connectors, OM3, MMF

More Views

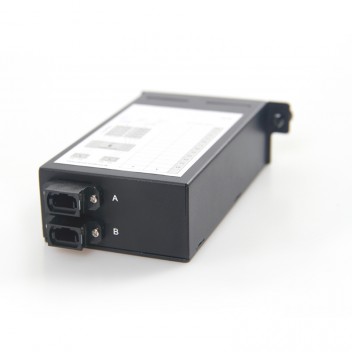

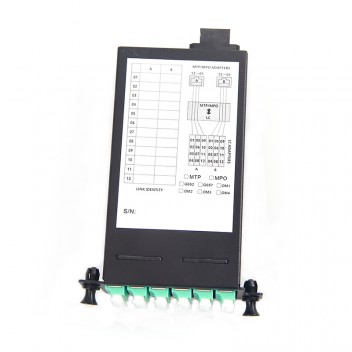

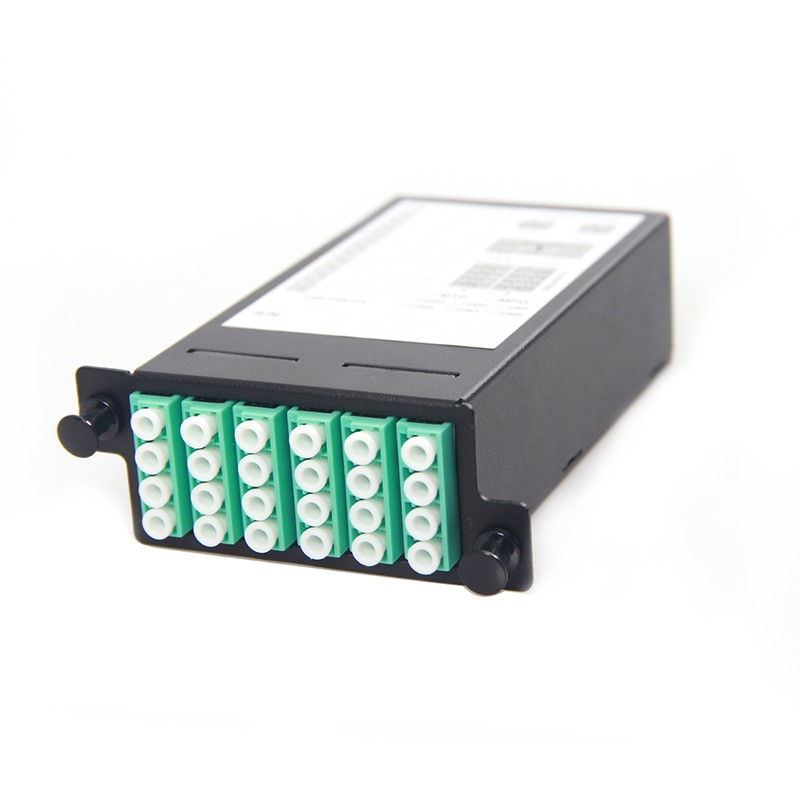

24 Core MPO Box, 2 ports MPO to 2x 12 ports LC connectors, OM3, MMF

SKU: 2MPO-24LC-OM3-box SKU1: 2MPO-24LC-OM3-box

Availability: In stock

US$119.00
Volume Price: Inquire
● 2MPO-24LC-OM3
● 2 MPO connectors in, 24 LC connectors out
● MMF, OM3
● Mounting on MPO-Chassis-1U or MPO-Chassis-2U

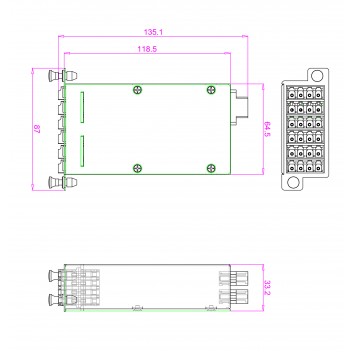

● Box Size: 118.5x64.5x33.2mm ( Lx Wx H)

●10Gtek made in China
OR
Product Description Shipping & Payment Customer Reviews
2MPO-24LC-OM3-box

Details

10gtek develops a high density fiber system MPO box, fits for SC/LC, MMF/SMF high density cabling system etc. With high density modular design, patching system can be fast assembled and installed without any tool and complex operations.

Simple installation, fast construction, compact design, high precision, plugs and play, etc.
Features:
  • Design in 2 ports MPO switch to 2x 12 ports LC connection
  • MMF OM3
  • Box Size: 118.5x64.5x33.2mm ( Lx Wx H)
  • This cabling system is modular in design, the higher density, special designed ultra-small MPO box which saves more space
  • Unique tool-free installation design for easy and fast assembly and installation
  • Factory pre- terminated module, plug and play on site, no need fiber splicing and cable wiring which saves labor cost
  • Relative humidity:<=85%(+30ºC)
  • Air pressure:70kPa~106kPa
  • Wide temperature range: Operation: -20ºC to +55ºC; Storage: -20ºC to +60ºC
Applications:
  • Telecom system
  • Data center cabling system
  • High density MPO system
Part Number Description Weight Fiber Type LC/SC Port Qty Operation Temp (deg C) Wavelength MPO Insertion Loss MPO Return Loss
MPOBOX01-2 2MPO-24LC-OM3 0.22 MMF 24 -20~+55 850nm/1300nm <=0.6 >=20db
MPOBOX01-3 3MPO-24LC-OM3 0.22 MMF 24 -20~+55 850nm/1300nm <=0.6 >=20db
MPOBOX05 1MPO-12SC-OM3 0.22 MMF 12 -20~+55 850nm/1300nm <=0.6 >=20db
MPOBOX11-2 2MPO-24LC-SM1 0.22 SMF 24 -20~+55 1310nm/1550nm <=0.75 >=50db
MPOBOX11-3 3MPO-24LC-SM1 0.22 SMF 24 -20~+55 1310nm/1550nm <=0.75 >=50db
MPOBOX13 1MPO-12SC-SM1 0.22 SMF 12 -20~+55 1310nm/1550nm <=0.75 >=50db

High Density Fiber System MPO BOX
