SG-XPCIE2FC-EM8-N

SG-XPCIE2FC-EM8-N

SKU: SG-XPCIE2FC-EM8-N

Availability: Out of stock

$824.00
Volume Price: Inquire

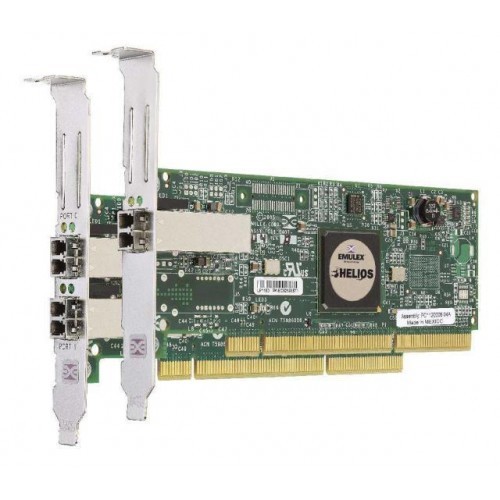

Oracle 8Gb/s Fibre Channel PCI Express Dual Channel Host Bus Adapter
● Lead Time: 3~6 days
● Warranty: 3-Years
SG-XPCIE2FC-EM8-N

Details

SG-XPCIE2FC-EM8-N
Oracle 8Gb/s Fibre Channel PCI Express Dual Channel Host Bus Adapter

Standards
ANSI Fibre Channel: FC-PI-4, FC-FS-2, FC-FS-2/AM1, FC-LS, FC-AL-2, FC-GS-6, FC-FLA, FC-PLDA, FC-TAPE, FC-DA, FCP through FCP-4, SBC-3, FC-SP, FC-HBA and SMI-S v1.1
PCI Express base spec 2.0
PCI Express card electromechanical spec 2.0
Fibre Channel class 2 and 3
PHP hot plug-hot swap

Architecture
Dual-channel
8Gb/s, 4Gb/s or 2Gb/s FC Link speeds automatically detected
Integrated data buffer and code space memory

Comprehensive OS Support
Solaris, Windows, Linux, VMware

Hardware Environments
SPARC,? x86/x64 Intel? Itanium? and AMD? Opteron? 64-bit processor families

Optical
Data rates: 2.125, 4.25 and 8.5Gb/s (auto-detected)
Optics: Short wave lasers with LC type connector
Cable: Operating at 8Gb/s
50/125?m (500MHz*km BW)-up to 50m
50/125?m (2000MHz*km BW)-up to 150m

Physical Dimensions
Short, low profile MD2 form factor card
167.64mm x 64.42mm (6.60” x 2.54”)
Standard bracket (low profile available)

Power & Environmental Requirements
Volts: +3.3, +12
Operating temperature: 0° to 55°C (32° to 131°F)
Storage temperature: -40° to 70°C (-40° to 158°F)
Relative humidity: 5% to 95% non-condensing
23 degree C wet bulb

Agency Approvals
Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1
UL recognized to UL 60950-1
CUR recognized to CSA22.2, No. 60950-1-03
TUV certified to EN60950-1
FCC rules, Part 15, Class A
ICES-003, Class A
EMC Directive 2004/108/EEC (CE Mark)
EN55022, Class A
EN55024
Australian EMC Framework (C-Tick Mark)
AS/NZS CISPR22, Class A
VCCI, Class A
MIC (Korea), Class A
BSMI (Taiwan), Class A
EU RoHS Compliant (Directive 2002/95/EC)
China RoHS Compliant
