Details

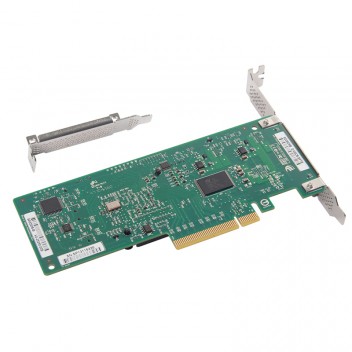

connectivity in 1U and 2U servers and workstations. The SAS 9211-8i provides 8 lanes of 6Gb/s
SAS and is matched with 8 lanes of PCI Express (PCIe) 2.0 5Gb/s performance to eliminate
bottlenecks. Performance is based on the SAS 2008 IO controller that highly integrates the
latest enhancements in PCIe and SAS technology. The HBA supports up to 256 SAS or SATA
devices.

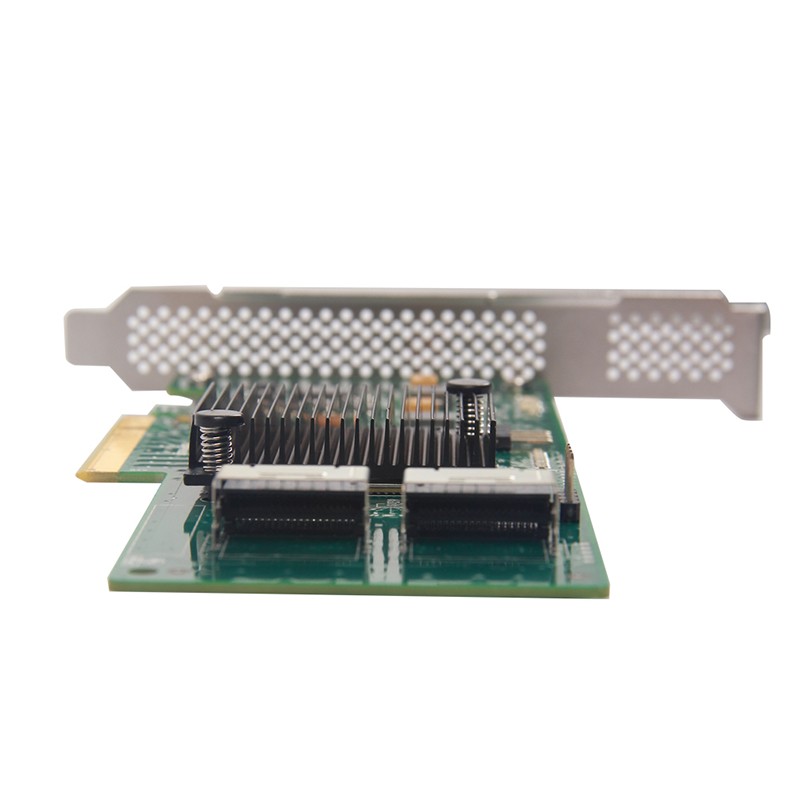

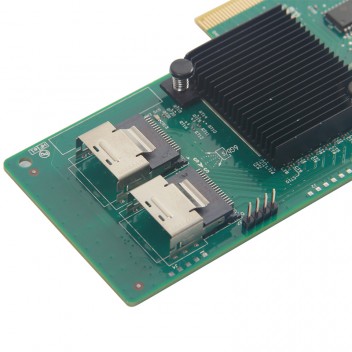

10Gtek's SAS 9211-8i has two (x4) internal mini SAS connectors (SFF8087) enabling a low profile solution which provide SAS and SATA data transfer rates of 1.5, 3 and 6Gb/s per lane through automatic speed negotiation that can achieve over 320,000 IOPs. Enhanced features include T-10 Protection Information Model for early detection of and recovery from data corruption, and Spread Spectrum Clocking (SSC) for minimal EMI.
I/O Controller | SAS2008/ Fusion MPT 2.0 |
Storage Connectivity ; Data Transfer Rates | 8 ports, 6Gb/s SAS 2.0 Compliant |
SAS Bandwidth | Half Duplex 600 MB/s per lane |
Port Configurations | 8 ea, x1 ports (indiv 2 ea, x4 wide port |
Host Bus | x8 lane, PCI Express 2.0 compliant |
PCI Data Burst Transfer Rates | Half Duplex x8, PCIe, 4000 MB/s |
Physical Dimensions | Low Profile (2.6” x 6.6”) |
Connectors | Two mini-SAS internal connectors (SFF8087) |
Brackets | Full height and low profile |
Cable Support | Passive Copper |
Host Bus Type | x8 lane, PCI Express 2.0 |
PCI Card Type | 3.3 V Add-in Card |
Operating Voltage | +12V +/-8%; 3.3V +/-8% |
PCI Power (Nominal) | 7W typical (Airflow min 200 LFM) |
Device Support | 256 Non-RAID SAS/SATA devices |
Integrated RAID (IR) | 14 spread across 2 volumes RAID 0 10 per volume RAID 1 2 per volume plus hot spare RAID 1E 10 per volume RAID 10 10 per volume |
Operating Temperature | 0°C to 55°C 5 to 90% Non-condensing |
Storage Temperature | -45°C to 105°C 5 to 90% Non-condensing |
OS Support | Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware |
