QSFP+ to XFP(4)  Splitter cable 0.5M

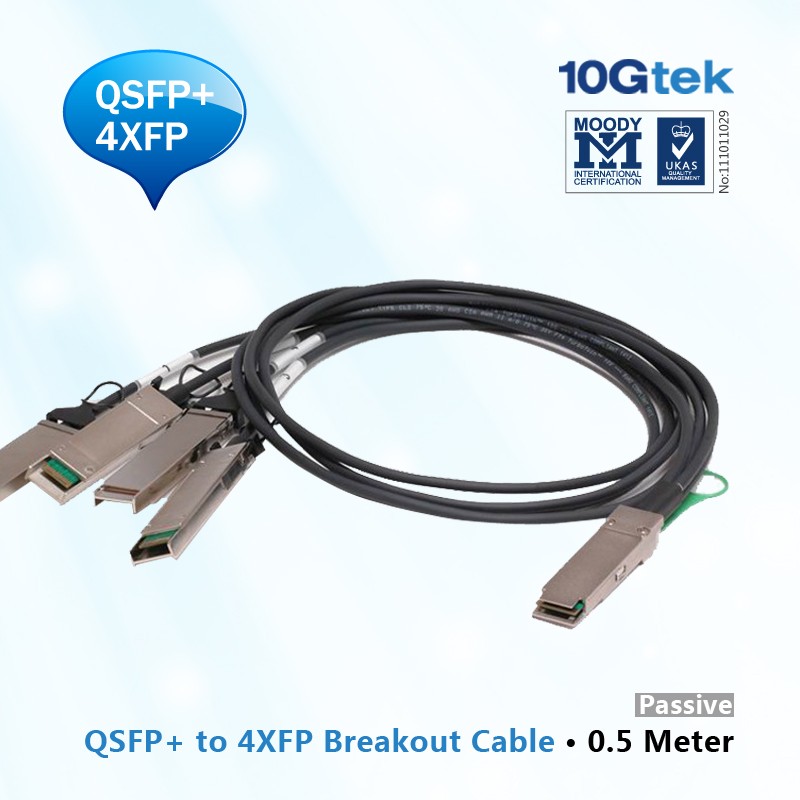

QSFP+ to XFP(4) Splitter cable 0.5M

SKU: CAB-QSFP/4XFP-P50CM

Availability: In stock

$192.00
Volume Price: Inquire
● Lead Time: 3~6 days
● Customized Cable not Accept Return & Refund
● 10Gtek Made in China.
OR
CAB-QSFP/4XFP-P50CM

Details

SFPcables.com's revolutionary 5m (16.4 ft) QSFP to 4x XFP Splitter Cable offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G XFP enabled host adapters, switches and servers.

For typical applications, users can install this splitter cable between an available QSFP port on their 40-Gigabit/s rated switch and feed up to four upstream 10GbE-XFP enabled switches. Each QSFP-XFP splitter cable features a single QSFP connector (SFF-8436) rated for 40-Gb/s on one end and (4) XFP connectors (INF-8077i), each rated for 10-Gb/s, on the other.

SFPcables.com is the manufacturer of QSFP to 4 XFP Splitter Cables that designs and sources every subassembly in-house guaranteeing complete control over product performance, quality and consistency. Examples include our widely respected board-as-connector platform which is direct-welded to the wire and encased in a robust Zinc-Nickel backshell for superior crosstalk and EMI performance. Cable available in 0.5M (1.7ft), 1m (3.3ft) lengths to accommodate your installation requirements.

This new version QSFP+ to 4 XFP breakout cable opens EEPROM for customer re-coding for different applications.

Specifications:
● QSFP+ (40G) to 4x XFP (10G) Splitter Cable - 0.5m (1.7 ft)
● Connector A: (1) QSFP 40.0 Gbps Rated Connector (SFF-8436 Compliant)
● Connector B: (4) XFP 10.0 Gbps Rated Connectors (INF-8077i Compliant)
● Economically Links up a QSFP port with an Upstream 10GbE-XFP Switch
● AWG30
● Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fibre Channel
● Up to 10.3125 Gbps transfer rate per XFP channel (40 Gbps aggregate)
● Robust Zinc die-cast XFP & QSFP connectors with pull-to-release latching
● Bridge the gap between your 10G and 40G capable switches/host adapters
● Low cross-talk and pair-to-pair skew maintains signal integrity
● Fully compliant to the latest XFP & QSFP MSA (Multi-Source-Agreement)
● Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standards
● Designated form factor and electrical compliance for QDR InfiniBand
● The perfect direct attached storage splitter cable for Fibre Channel & SAS
● Enjoy a reduced power budget and lower port cost compared to optical
● Fully RoHS compliant for environmental protection
QSFP+
  1. QSFP+ Transceivers
  2. QSFP+ AOC QDR/FDR
  3. QSFP+ AOC Breakout QDR
  4. QSFP+ DAC QDR/FDR
  5. QSFP+ DAC Breakout
  6. QSFP DAC Hybrid
  7. QSFP+ Loopback
  8. QSFP+ Extender
Quard Small Form-factor Pluggable (QSFP+) is a four-channel package, offering 4 times the density of traditional SFP+ ports and supporting speeds up to 10 Gb/s per channel.

10Gtek's product family consists of:
QSFP+ Transceiver;
QSFP+ Passive DAC, DDR, QDR and FDR;
QSFP+ to 8LC+ AOC QDR;
QSFP+ AOC QDR.
