LSI SAS 9207-8e

LSI SAS 9207-8e

SKU: LSI-SAS-9207-8e

Availability: Out of stock

$882.00
Volume Price: Inquire

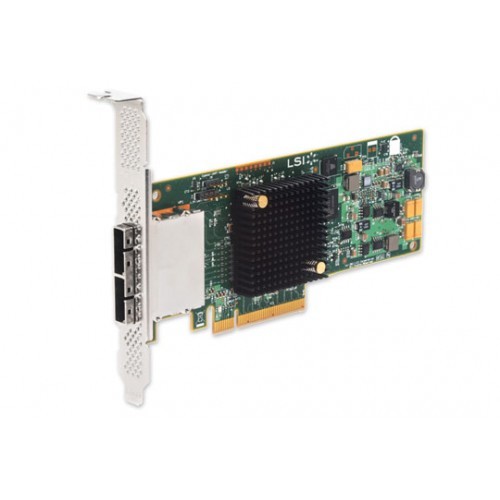

LSI SAS 9207-8e HOST BUS ADAPTER
● Lead Time: 3~6 days
● Warranty: 3-Years
LSI-SAS-9207-8e

Details

LSI SAS 9207-8e
LSI SAS 9207-8e HOST BUS ADAPTER

IO Controller: LSISAS2308 , Fusion MPT 2.0
Storage Connectivity: 8 ports
Data Transfer Rates: 6Gb/s SAS 2.1 Compliant
SAS Bandwidth: Half Duplex, 600 MB/s per lane
Port Configurations: 8 ea, x1 ports (individual drives)
2 ea, x4 wide ports
Host Bus: x8 lane, PCI Express 3.0 compliant
PCI Data Burst Transfer Rates: Half Duplex
x8, PCIe, 8000 MB/s
Physical Dimensions: Low Profile (2.7" x 6.6")
Connectors: Two Mini-SAS external connectors (SFF8088)
Brackets: Full height and low profile
Cable Support: Active Copper
Operating Voltage: +12V +/-8%; 3.3V +/-8%
PCI Power (Nominal): 9.8W typical, Airflow 200 LFM
Device Support: 1024 Non-RAID devices
Environmental: Operating Storage
0°C to 55°C -45°C to 105°C
5 to 90% Non-condensing 5 to 90% Non-condensing
MTBF: >2,000,000 hours
Regulatory Certifications: EMC: Class B-US (CFR 47, P15B); Canada (ICES-003); Japan (V-3/02.04); Europe (EN55022/EN55024); Australia/New Zealand (AS/NZS 3548); Safety: EN60950, RoHS; WEEE
OS Support: Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD
See http://www.lsi.com/support/pages/downloads.aspx for details on versions
