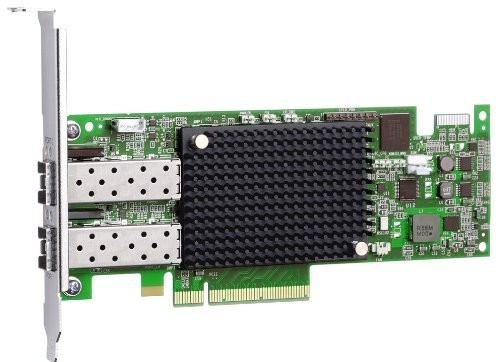

Emulex 2 Ports 16GFC Short Wave Optical – LC SFP+
General Specifications: The host system interface of XE201 consists of an eight-lane (x8) PCI Express PCIe 2.0 bus (backward compatibility to to PCIe 1.0 supported)
Industry Standards: Current ANSI/IETF Standards: FC-PI-4; FC-PI-5; FC-FS-2 with amendment 1; FC-AL-2 with amendments 1 and 2; FC-LS-2; FC-GS-6; FC-DA; FC-SP-2; FCP-4; FC-MJS; FC-SB-4; FC-SP; SPC-4; SBC-3; SSC-3; RFC4338
Legacy ANSI/IETF standards: FC-PH; FC-PH-2; FC-PH-3; FC-PI; FC-PI-2; FC-FS; FC-AL; FC-GS-2/3/4/5; FCP; FCP-2; FC-SB-2; FC-FLA; FC-HBA; FC-PLDA; FC-TAPE; FC-MI; SPC-3; SBC-2; SSC-2; RFC2625
PCIe base spec 2.0
PCIe card electromechanical spec 2.0
Fibre Channel class 2 and 3
PHP hot plug-hot swap
Single-channel (LPe16000) or dual-channel (LPe16002)
Supports 16GFC, 8GFC and 4GFC link speeds, automatically negotiated
Supports up to 2 FC ports at 16GFC max (dual-port model)
Integrated data buffer and code space memory
Comprehensive OS & Hypervisor Support
Additional support is available from OEMs and partners
PowerPC, SPARC, x86, x64 and Intel Itanium 64-bit processor family
Data rates: 14.025 Gb/s (1600Mb/s); 8.5 Gb/s (800Mb/s); 4.25 Gb/s (400 Mb/s) (auto-detected)
Optics: Short wave lasers with LC type connector
Cable: Operating at 16Gb
15m at 16Gb on 62.5/125 μm OM1 MMF
35m at 16Gb on 50/125 μm OM2 MMF
100m at 16Gb on 50/125 μm OM3 MMF
125m at 16Gb on 50/125 μm OM4 MMF
Short, low profile MD2 form factor card
167.64mm x 68.91mm (6.60” x 2.71”)
Standard bracket (low profile available)
Power & Environmental Requirements
Power supply 1.8V, 1.2V, 0.9V
Volts: +3.3, +12
Operating temperature: 0° to 55° C (32° to 131° F)
Storage temperature: -40° to 70° C (-40° to 158° F)
Relative humidity: 5% to 95% non-condensing
23° C wet bulb
Agency and Safety Approvals
FCC Part 15, Subpart B, Class A (U.S.)
ICES-003 Class A (Canada)
VCCI Class A (Japan)
CE Mark (EU), consisting of: EN55022:2006 +A1, Class A
AS/NZS CISPR22:2006 Class A
CISPR 22:2005+A1 (International)
KCC (formally MIC), Class A with latest RRL notices (Korea)
BSMI Class A (Taiwan)
UL 60950-1:2001 (cURus – U.S.)
CSA 22.2 No 60950-1-03 (cURus - Canada)
TUV Bauart certified to EN60950-1:2001
CB Report and Certificate to IEC 60950-1:2001 (International)
Dimethyl Fumarate (DMF) restrictions in packaging, ref. EU Decision 2010/251/EC: EU RoHS Compliant (Directive 2002/95/EC)
China RoHS Compliant
Doubling the maximum FC link rate from 8GFC to 16GFC and enhanced virtualization capabilities, help support IT “green” initiatives.
Frame-level multiplexing and out-of-order frame reassembly increases link efficiency and maximizes HBA performance.
Data Protection Features
End-to-end data protection with hardware parity, CRC, ECC and other advanced error checking and correcting algorithms ensure data is safe from corruption.
Enhanced silent data corruption protection provided by T10 Protection Information (T10 PI) with high performance offload. T10 PI provides additional protection against corruption in Oracle Unbreakable Linux environments.
Deployment and Management Features
Universal boot capability allows the appropriate boot environment to be automatically selected for any given hardware.
Boot from SAN capability reduces system management costs and increases uptime.
Detailed, real-time event logging and tracing enables quick diagnosis of SAN problems.
Beaconing feature flashes the HBA LEDs, simplifying their identification within server racks.
Environmental monitoring feature helps optimize SAN availability.
The Emulex OneCommand Manager application enables centralized discovery, monitoring, reporting, and administration of HBAs and UCNAs provided by Emulex on local and remote hosts. Powerful automation capabilities facilitate remote driver parameter, firmware and boot code upgrades.
Advanced diagnostic features, such as adapter port beaconing and adapter statistics, help optimize management and network performance, while the environmental monitoring feature helps to maintain optimum host-to-fabric connections. In addition to the GUI interface, management functions can also be performed via a scriptable Command Line Interface (CLI) as well as a web browser.
Emulex’s management instrumentation complies to open management standards, such as SMI-S and common HBA API support, which enables seamless upward integration into enterprise storage and server management solutions.
