LPe12002-E

LPe12002-E

SKU: LPe12002-E

Availability: Out of stock

$652.00
Volume Price: Inquire

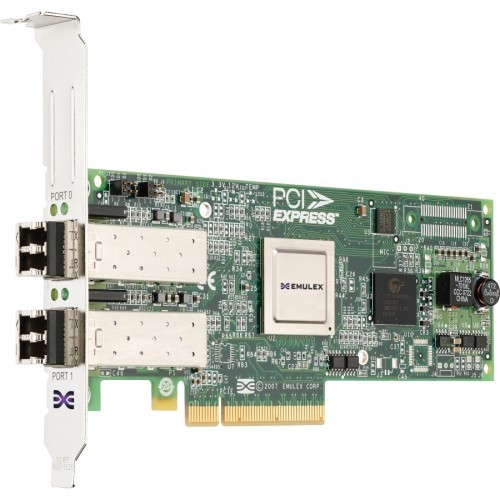

Dell 8Gb/s Fibre Channel PCI Express Dual Channel Host Bus Adapter
● Lead Time: 3~6 days
● Warranty: 3-Years
LPe12002-E

Details

LPe12002-E
Dell 8Gb/s Fibre Channel PCI Express Dual Channel Host Bus Adapter

Standards
ANSI Fibre Channel: FC-PI-4, FC-FS-2, FC-FS-2/AM1, FC-LS, FC-AL-2, FC-GS-6, FC-FLA, FC-PLDA, FC-TAPE, FC-DA, FCP through FCP-4, SBC-3, FC-SP, FC-HBA and SMI-S v1.1
PCI Express base spec 2.0
PCI Express card electromechanical spec 2.0
Fibre Channel class 2 and 3
PHP hot plug-hot swap

Architecture
Dual-channel
4Gb/s, 2Gb/s or 1Gb/s FC Link speeds automatically detected
Integrated data buffer and code space memory

Comprehensive OS Support
Windows, Linux, NetWare, Solaris, VMware
Additional support is available from OEMs and partners

Hardware Environments
PowerPC?, SPARC?, x86, x64 and Intel? Itanium? 64-bit processor family

Optical
Data rates: 2.125, 4.25 and 8.5Gb/s (auto-detected)
Optics: Short wave lasers with LC type connector
Cable: Operating at 8Gb/s
50/125?m (500MHz*km BW)-up to 50m
50/125?m (2000MHz*km BW)-up to 150m

Physical Dimensions
Short, low profile MD2 form factor card
167.64mm x 68.91mm (6.60" x 2.71")
Standard bracket (low profile available)

Power & Environmental Requirements
Volts: +3.3, +12
Operating temperature: 0° to 55°C (32° to 131°F)
Airflow required: 100 lf/m
Storage temperature: -40° to 70°C (-40° to 158°F)
Relative humidity: 5% to 95% non-condensing
23 degree C wet bulb

Agency Approvals
UL recognized to UL 60950-1
CUR recognized to CSA22.2, No. 60950-1-03
TUV certified to EN60950-1
FCC rules, Part 15, Class A
ICES-003, Class A
EMC Directive 2004/108/EEC (CE Mark)
EN55022, Class A
EN55024
Australian EMC Framework (C-Tick Mark)
AS/NZS CISPR22, Class A
VCCI, Class A
MIC (Korea), Class A
BSMI (Taiwan), Class A
EU RoHS Compliant (Directive 2002/95/EC)
China RoHS Compliant
