LPe12000

LPe12000

SKU: LPe12000

Availability: Out of stock

$460.00
Volume Price: Inquire

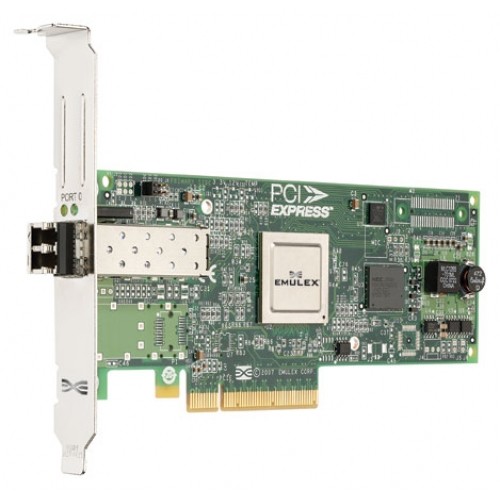

Emulex 1 Port 8GFC Short Wave Optical – LC SFP+
● Lead Time: 3~6 days
● Warranty: 3-Years
LPe12000

Details

LPe12000
Emulex 1 Port 8GFC Short Wave Optical – LC SFP+

Standards
ANSI Fibre Channel: FC-PI-4, FC-FS-2, FC-FS-2/AM1, FC-LS, FC-AL-2, FC-GS-6, FC-FLA, FC-PLDA, FC-TAPE, FC-DA, FCP through FCP-4, SBC-3, FC-SP, FC-HBA and SMI-S v1.1
PCI Express base spec 2.0
PCI Express card electromechanical spec 2.0
Fibre Channel class 2 and 3
PHP hot plug-hot swap

Architecture
Single-channel
8Gb/s, 4Gb/s or 2Gb/s FC Link speeds automatically detected
Integrated data buffer and code space memory

Comprehensive OS Support
Windows, Linux, NetWare, Solaris, VMware
Additional support is available from OEMs and partners

Hardware Environments
PowerPC,? SPARC,? x86, x64 and Intel? Itanium? 64-bit processor family

Optical
Data rates: 2.125, 4.25 and 8.5Gb/s (auto-detected)
Optics: Short wave lasers with LC type connector
Cable: Operating at 8Gb/s
50/125 microns (500MHz*km BW)-up to 50m
50/125 microns (2000MHz*km BW)-up to 150m

Physical Dimensions
Short, low profile MD2 form factor card
167.64mm x 68.91mm (6.60" x 2.71")
Standard bracket (low profile available)

Power & Environmental Requirements
Volts: +3.3, +12
Operating temperature: 0° to 55°C (32° to 131°F)
Storage temperature: -40° to 70°C (-40° to 158°F)
Relative humidity: 5% to 95% non-condensing
23 degree C wet bulb

Agency Approvals
Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1
UL recognized to UL 60950-1
CUR recognized to CSA22.2, No. 60950-1-03
Baurt-certified to EN60950-1
FCC Rules, Part 15, Class A
ICES-003, Class A
EMC Directive 2004/108/EEC (CE Mark)
EN55022, Class A
EN55024
Australian EMC Framework (C-Tick Mark)
AS/NZS CISPR22, Class A
VCCI (Japan), Class A
MIC (Korea), Class A
BSMI (Taiwan), Class A
EU RoHS Compliant (Directive 2002/95/EC)
China RoHS Compliant
