LPe1105

LPe1105

SKU: LPe1105

Availability: Out of stock

$191.00
Volume Price: Inquire

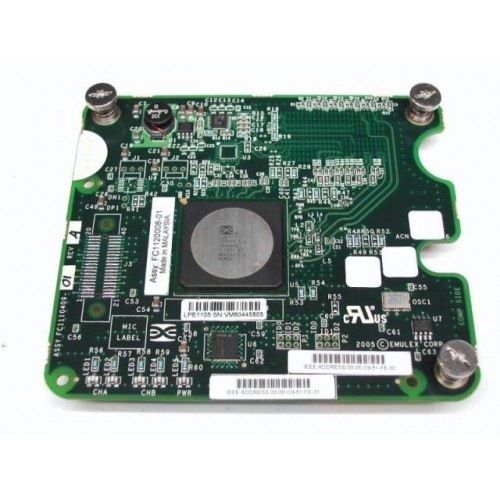

Dell 4Gb/s Fibre Channel Mezzanine Card Dual Channel Host Bus Adapter for the Dell PowerEdge M1000e
● Lead Time: 3~6 days
● Warranty: 3-Years
LPe1105

Details

LPe1105
Dell 4Gb/s Fibre Channel Mezzanine Card Dual Channel Host Bus Adapter for the Dell PowerEdge M1000e

Standards
ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-TAPE, FCP-2 and RFC 2625 (IP over FC)
PCI Express base spec 1.0a
Fibre Channel class 2 and 3
PHP hot plug-hot swap

Architecture
Dual-channel
4Gb/s, 2Gb/s or 1Gb/s FC Link speeds automatically detected
Integrated data buffer and code space memory Comprehensive OS Support
Windows Server 2003, Linux, VMware

Hardware Environments
Dell PowerEdge M1000e blade server platforms

Power & Environmental Requirements
Volts: 3.3 & 12.0VDC
Power consumption (typ/max): 4.6W / 6.5W
Operating temperature: 0°C to 65°C (32° to 149°F)
Airflow required: 200 lf/m
Storage temperature: -40° to 70°C (-40° to 158°F)
Relative humidity: 5% to 95% non-condensing

Additional Features
Emulex LightPulse HBA technology features Frame-level Multiplexing and out-of-order frame reassembly for maximum link utilization. End-to-end data protection with hardware parity, CRC, ECC and other advanced error checking and correcting algorithms ensure data is safe from corruption.
Detailed real-time event logging and tracing enables quick diagnosis of SAN problems.
Boot from SAN capability reduces system management costs and maximize network uptime.

Agency Approvals
UL recognized to UL 60950-1
CUR recognized to CSA22.2, No. 60950-1-03
TUV certified to EN60950-1
FCC rules, Part 15, Class A
ICES-003, Class A
EMC Directive 2004/108/EEC (CE Mark)
EN55022, Class A
EN55024
Australian EMC Framework (C-Tick Mark)
AS/NZS CISPR22, Class A
VCCI, Class A
RoHS Compliant (Directive 2002/95/EC) for environmental requirements
China RoHS compliant
Japan UCCI, Class A
Korea MIC, Class A
