SKU: LPe11002-E

Availability: Out of stock

Volume Price: Inquire

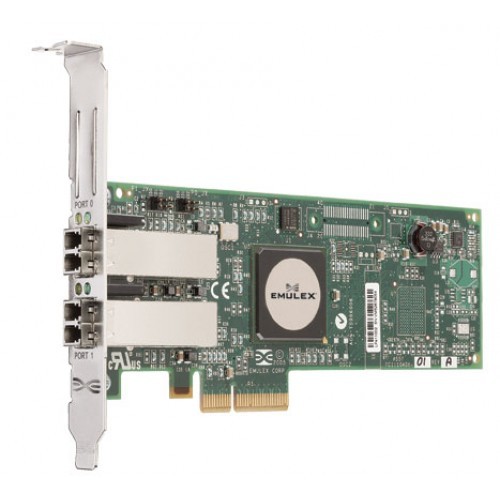

Dell 4Gb/s Fibre Channel PCI Express Dual Channel Host Bus Adapter
● Lead Time: 3~6 days
● Warranty: 3-Years


Dell 4Gb/s Fibre Channel PCI Express Dual Channel Host Bus Adapter

ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-SP, FC-TAPE, FCP-2, and RFC 2625 (IP over FC)
PCI Express base spec 1.0a
PCI Express card electromechanical spec 1.0a
Fibre Channel class 2 and 3
PHP hot plug-hot swap

4Gb/s, 2Gb/s or 1Gb/s FC Link speeds automatically detected
Integrated data buffer and code space memory

Comprehensive OS Support
Windows, Linux, NetWare, Solaris, VMware, HP?UX
Additional support is available from OEMs and partners

Hardware Environments
PowerPC?, SPARC?, x86, x64 and Intel? Itanium? 64-bit processor family

Data rates: 1.0625, 2.125 and 4.25Gb/s (auto-detected)
Optics: Short wave lasers with LC type connector
Cable:50/125 microns, up to 150 meters at 4Gb/s
62.5/125 microns, up to 70 meters at 4Gb/s

Physical Dimensions
Short, low profile MD2 form factor card
167.64mm x 64.42mm (6.60" x 2.54")
Standard bracket (low profile available)

Power & Environmental Requirements
Volts: +3.3
Operating temperature: 0° to 55°C (32° to 131°F)
Airflow required: 100 lf/m
Storage temperature: -40° to 70°C (-40° to 158°F)
Relative humidity: 5% to 95% non-condensing

Agency Approvals
UL recognized to UL 60950-1
CUR recognized to CSA22.2, No. 60950-1-03
TUV certified to EN60950-1
FCC rules, Part 15, Class A
ICES-003, Class A
EMC Directive 2004/108/EEC (CE Mark)
EN55022, Class A
Australian EMC Framework (C-Tick Mark)
VCCI, Class A
MIC (Korea), Class A
BSMI (Taiwan), Class A
RoHS Compliant (Directive 2002/95/EC) for environmental requirements

Additional Features
Emulex LightPulse technology features Frame-level Multiplexing and out-of-order frame reassembly for maximum link utilization.
End-to-end data protection with hardware parity, CRC, ECC and other advanced error checking and correcting ensure that data is safe from corruption.
Detailed real-time event logging and tracing enables quick diagnosis of SAN problems.
Universal Boot capability allows the appropriate boot environment to be automatically selected for any given OS.
Strong authentication between host and fabric is based on full Fibre Channel Security Protocol (FC-SP) Diffie-Helmann Challenge Handshake Authentication Protocol (DH-CHAP) compliance.
