LP1150

LP1150

SKU: LP1150

Availability: Out of stock

$96.00
Volume Price: Inquire

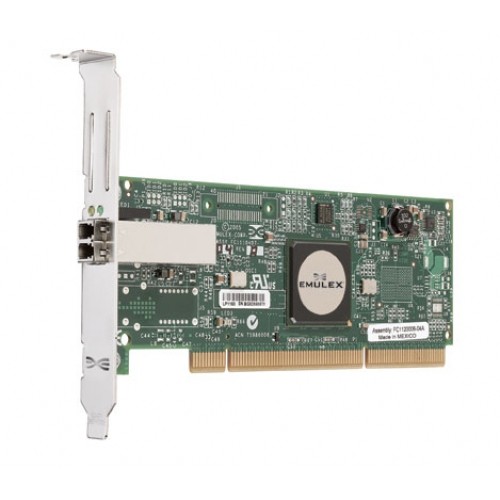

Emulex 1 Port 4GFC Short Wave Optical – LC SFP+
● Lead Time: 3~6 days
● Warranty: 3-Years
LP1150

Details

LP1150
Emulex 1 Port 4GFC Short Wave Optical – LC SFP+

Standards
ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-SP, FC-TAPE, FCP-2, and RFC 2625 (IP over FC)
PCI-X 2.0 and PCI 3.0
Fibre Channel class 2 and 3
PHP hot plug-hot swap

Architecture
Single-channel
4Gb/s, 2Gb/s or 1Gb/s FC Link speeds automatically detected
Integrated data buffer and code space memory

Comprehensive OS Support
Windows, Linux, NetWare, VMware

Hardware Environments
x86, x64, and Intel? Itanium? processor family
32/64-bit 33/66MHz PCI (3.3 signaling)
66/100/133/266MHz PCI-X bus speeds

Optical
Data rates: 1.0625, 2.125 and 4.25Gb/s (auto-detected)
Optics: Short wave lasers with LC type connector
Cable: 50/125 microns, up to 150 meters at 4Gb/s 62.5/125 microns, up to 70 meters at 4Gb/s

Physical Dimensions
Short, low profile MD2 form factor card
167.64mm x 64.42mm (6.60” x 2.54”)
Standard bracket (low profile available)

Power & Environmental Requirements
Volts: +3.3 and 5 VDC
Operating temperature: 0° to 55°C (32° to 131°F)
Airflow required: 100 lf/m
Storage temperature: -40° to 70°C (-40° to 158°F)
Relative humidity: 5% to 95% non-condensing

Agency Approvals
Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1
UL recognized to UL 60950-1
CUR recognized to CSA22.2, No. 60950-1-03
TUV certified to EN60950-1
FCC rules, Part 15, Class A
ICES-003, Class A
EMC Directive 2004/108/EEC (CE Mark)
EN55022, Class A
EN55024
Australian EMC Framework (C-Tick Mark)
AS/NZS CISPR22, Class A
VCCI, Class A
MIC (Korea), Class A
BSMI (Taiwan), Class A
RoHS Compliant (Directive 2002/95/EC) for environmental requirements

Additional Features
Emulex LightPulse technology features Frame-level Multiplexing and out-of-order frame reassembly for maximum link utilization.
End-to-end data protection with hardware parity, CRC, ECC and other advanced error checking ensure that data is safe from corruption.
Detailed real-time event logging and tracing enables quick diagnosis of SAN problems.
Universal Boot capability allows the appropriate boot environment to be automatically selected for any given OS.
Strong authentication between host and fabric is based on full Fibre Channel Security Protocol (FC-SP) Diffie-Helmann Challenge Handshake Authentication Protocol (DH-CHAP) compliance.
