QSFP28-100G-CU1M

More Views

  • QSFP28-100G-CU1M

For Huawei QSFP28-100G-CU1M, QSFP28<->QSFP28, passive, 1m

SKU: QSFP28-100G-CU1M SKU1: QSFP28-100G-CU1M

Availability: In stock

US$59.00
Volume Price: Inquire
● For Huawei QSFP28-100G-CU1M
● 100G QSFP28
● 1-Meter
● Passive
● EEPROM
● AWG30
OR
Product Description Shipping & Payment Customer Reviews
QSFP28-100G-CU1M

Details

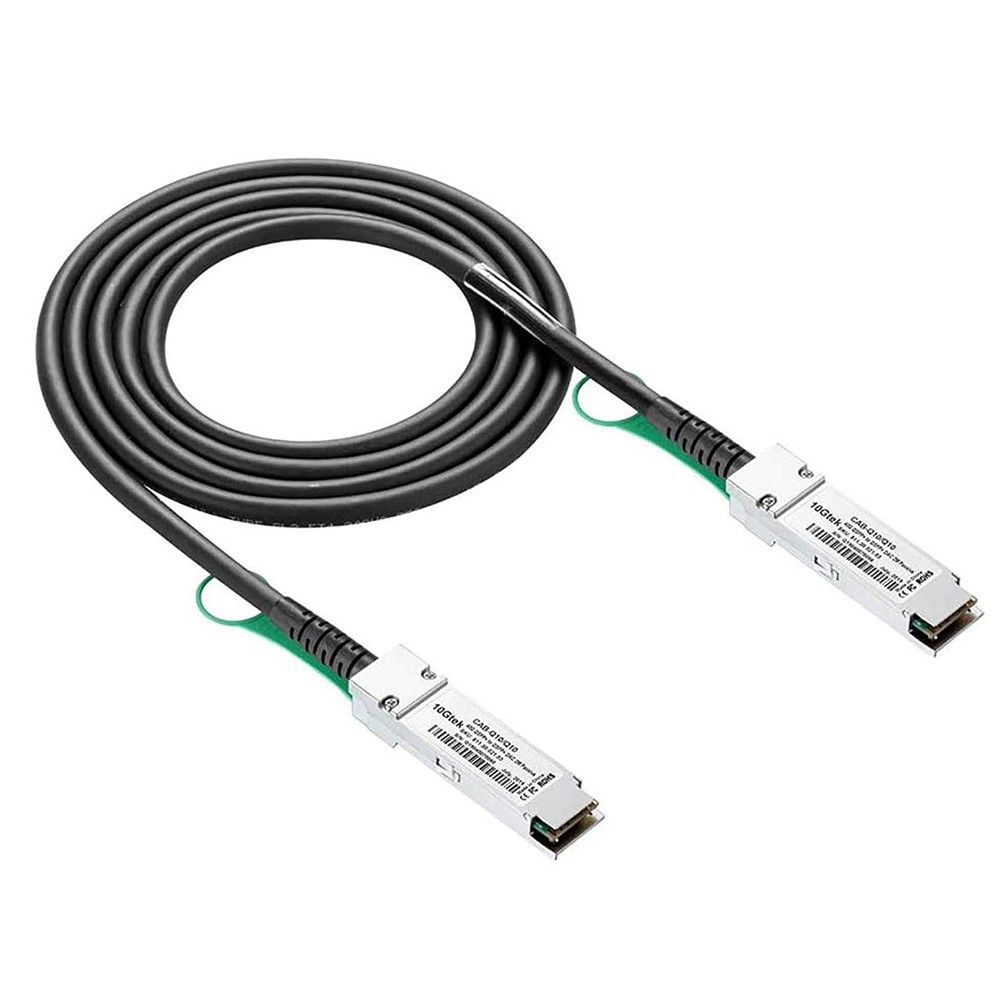

For Huawei QSFP28-100G-CU1M passive copper cable assembly features eight differential copper pairs, providing four data transmission channels at speeds up to 28Gbps per channel, and meets 100G Ethernet (4x25Gbps) and InfiniBand EDR (Enhanced Data Rate) requirements. These 100G copper cable assembly features a unique construction with individually wrapped twinax pairs, resulting in low insertion loss and low cross talk.

Features:
  • For Huawei QSFP28-100G-CU1M
  • Supports aggregate data rates of 100Gbps
  • 1 Meter
  • AWG30
  • Low insertion loss and low cross talk
  • Wide operating temperature range:
        Standard: 0ºC to +70ºC
        Industrial: -20ºC to +80ºC
Applications:
  • For Huawei QSFP28-100G-CU1M
  • Low EMI radiation Switches, servers and routers
  • Data Center networks
  • Storage area networks
  • High performance computing
  • Telecommunication and wireless infrastructure
  • Medical diagnostics and networking
  • Test and measurement equipment
Compliant:
  • 100G Ethernet (IEEE 802.3bj)
  • InfiniBand EDR
  • SFF-8665
  • RoHS compliant
Order Information:
Part Number Description Data Rate Length Cable Type Temp. Range(°C)
CAB-ZQP/ZQP-P1M 100G QSFP28 (EDR) DAC Cable, 1-Meter 100Gbps 1 Passive Twinax  0~70
CAB-ZQP/ZQP-P2M 100G QSFP28 (EDR) DAC Cable, 2-Meter 100Gbps 2 Passive Twinax  0~70
CAB-ZQP/ZQP-P3M 100G QSFP28 (EDR) DAC Cable, 3-Meter 100Gbps 3 Passive Twinax  0~70
CAB-ZQP/2ZQP-P1M 100G QSFP28 to 2x 50G QSFP28 Copper Breakout Cable, 1-Meter 100Gbps 1 Passive Twinax  0~70
CAB-ZQP/2ZQP-P2M 100G QSFP28 to 2x 50G QSFP28 Copper Breakout Cable, 2-Meter 100Gbps 2 Passive Twinax  0~70
CAB-ZQP/2ZQP-P3M 100G QSFP28 to 2x 50G QSFP28 Copper Breakout Cable, 3-Meter 100Gbps 3 Passive Twinax  0~70
CAB-ZQP/4ZSP-P1M 100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable, 1-Meter 100Gbps 1 Passive Twinax  0~70
CAB-ZQP/4ZSP-P2M 100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable, 2-Meter 100Gbps 2 Passive Twinax  0~70
CAB-ZQP/4ZSP-P3M 100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable, 3-Meter 100Gbps 3 Passive Twinax  0~70
CAB-ZSP/ZSP-P1M 25G SFP28 DAC Cable, 1-Meter 25Gbps 1 Passive Twinax  0~70
CAB-ZSP/ZSP-P2M 25G SFP28 DAC Cable, 2-Meter 25Gbps 2 Passive Twinax  0~70
CAB-ZSP/ZSP-P3M 25G SFP28 DAC Cable, 3-Meter 25Gbps 3 Passive Twinax  0~70
CAB-ZSP/ZSP-P5M 25G SFP28 DAC Cable, 5-Meter 25Gbps 5 Passive Twinax  0~70

QSFP28/SFP28 DAC Passive
